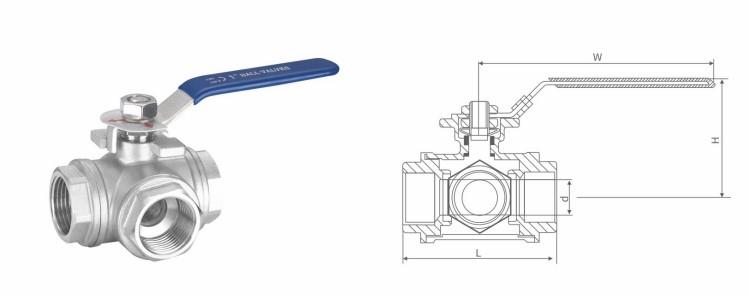

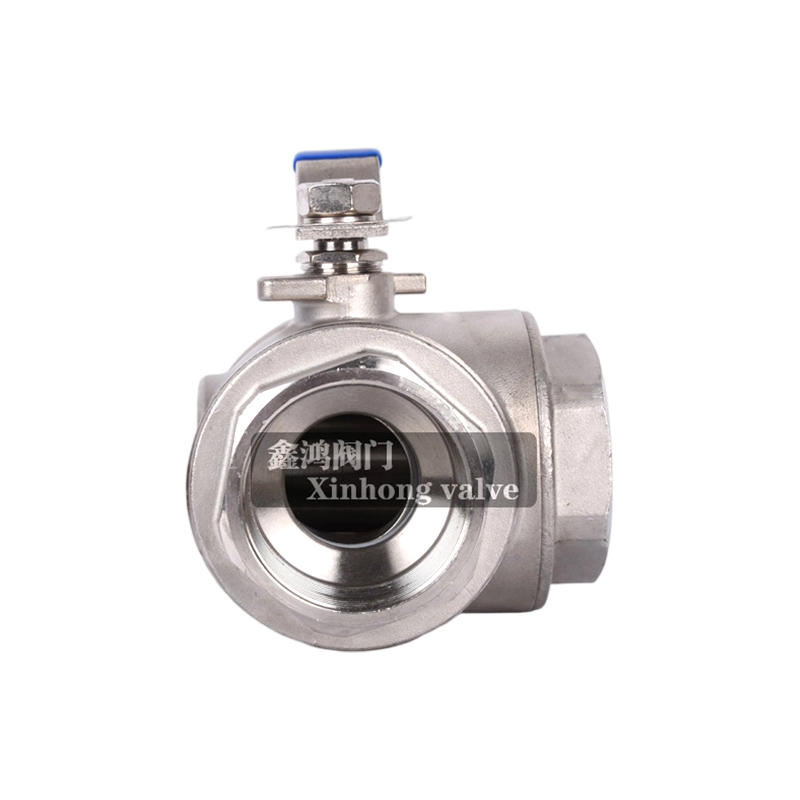

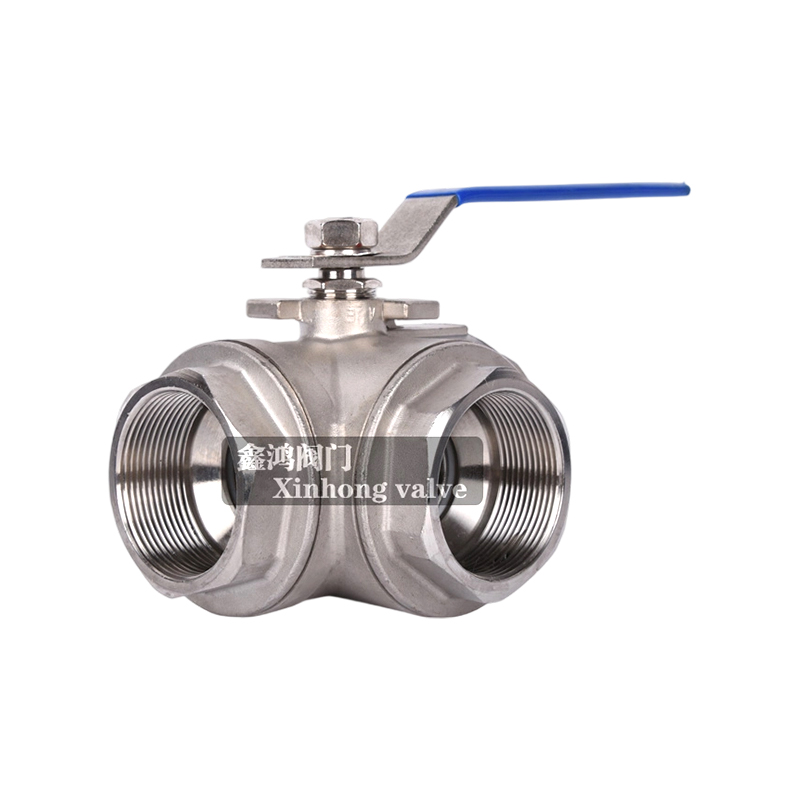

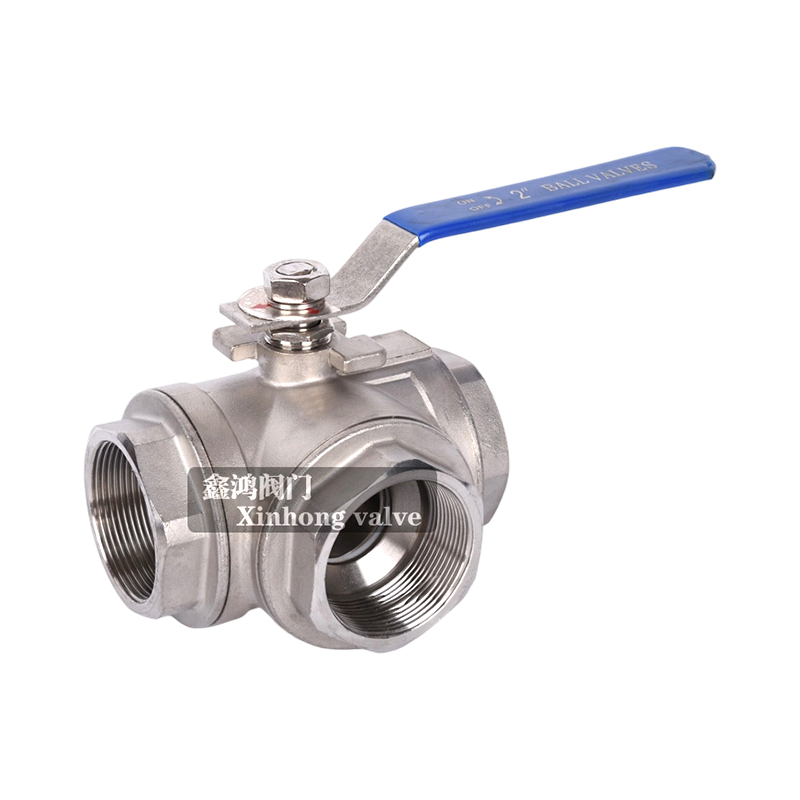

T/L Port 3-Way Manual Stainless Steel Screw Ball Valve

Media: Water, Oil & Gas
Material: Stainless Steel
Connection Form: Thread
Driving Mode: Manual/Pneumatic & Electric
Nominal Pressure: 1000psi
Channel: Tee Type

What is Three Way Stainless Steel Ball Valve?
Three Way Ball Valves have 3 ports. We always call them " T"-port 3 way Ball Valve and "L"-Port 3 Way Ball Valves. The main difference is the ball inside the valve bodies.L port 3 Way Ball Valve's Ball with 2 Holes, T port 3 Way Ball Valve's Ball with 3 Holes. So the direction of water flow will be different between this two type 3 Way Ball Valve.

Advantage:
1.The fluid resistance is small, and its resistance coefficient is equal to that of the pipe section of the same length.
2.Simple structure, small size and light weight.
3.Maintenance is convenient, the ball valve structure is simple, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
4.When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and the medium will not cause erosion of the sealing surface of the valve when the medium passes through.
