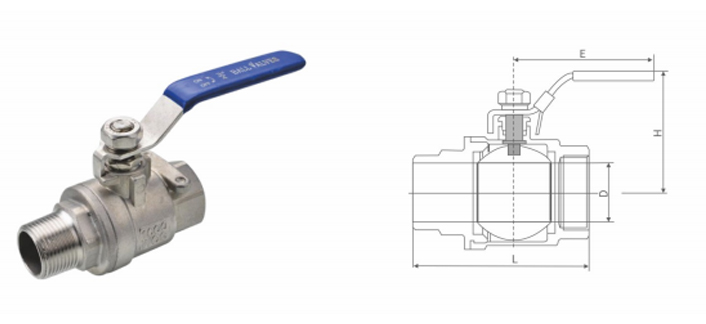

2 Piece/PC Heavy Duty Internal And External Screw Manual Ball Valve

Product specification: NPS 1/2"~2"
Nominal pressure: PN 1.0/1.6MPa
Applicable media: water, air, oil
Applicable temperature:-20~120℃
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test :GB/T 13927/API598

Our 2-piece internally and externally threaded heavy-duty ball valve is designed for high-strength pipe connections. It features a CF8M/CF8/WCB body and offers excellent corrosion resistance and pressure resistance. Available in sizes from NPS 1/2" to 2", with nominal pressures of PN 1.0/1.6 MPa, it is suitable for a variety of fluids, including water, air, and oil. Operating temperatures range from -20°C to 120°C, it is widely used in industrial automation, civil pipelines, water treatment, and oil and gas transportation systems.

This ball valve features an internally and externally threaded design, compatible with a variety of standard threaded connections (BSPT/BSP/NPT/DIN/JIS/RC/G), providing flexible and convenient installation. Key components, such as the ball and stem, are made of SS304 or SS316 stainless steel, and sealing elements are made of PTFE, ensuring high sealing performance and stability. The handle, nut, and washer are made of SS202, offering durability and being suitable for long-term, high-frequency operation. Its robust construction and easy maintenance make it a reliable shutoff and regulating device in industrial piping systems.
