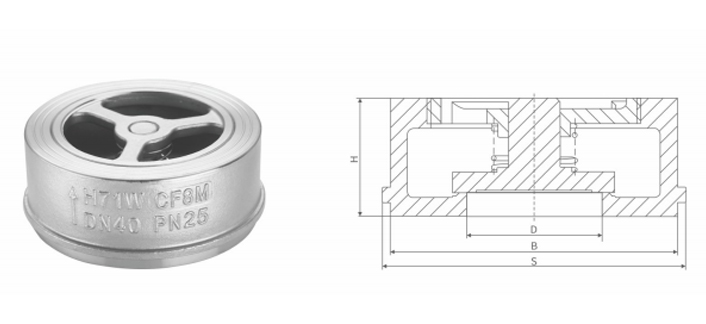

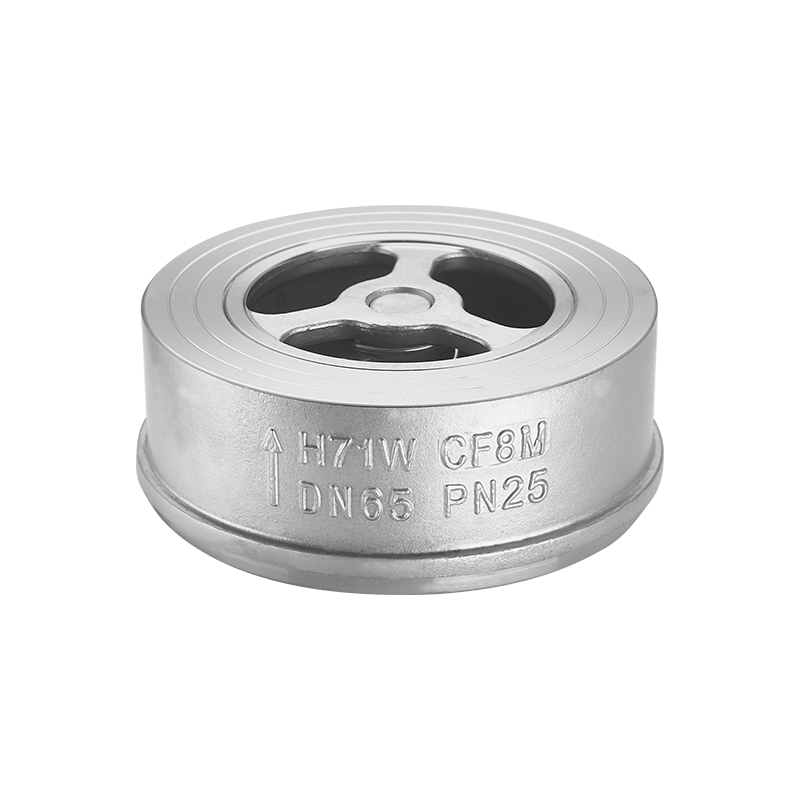

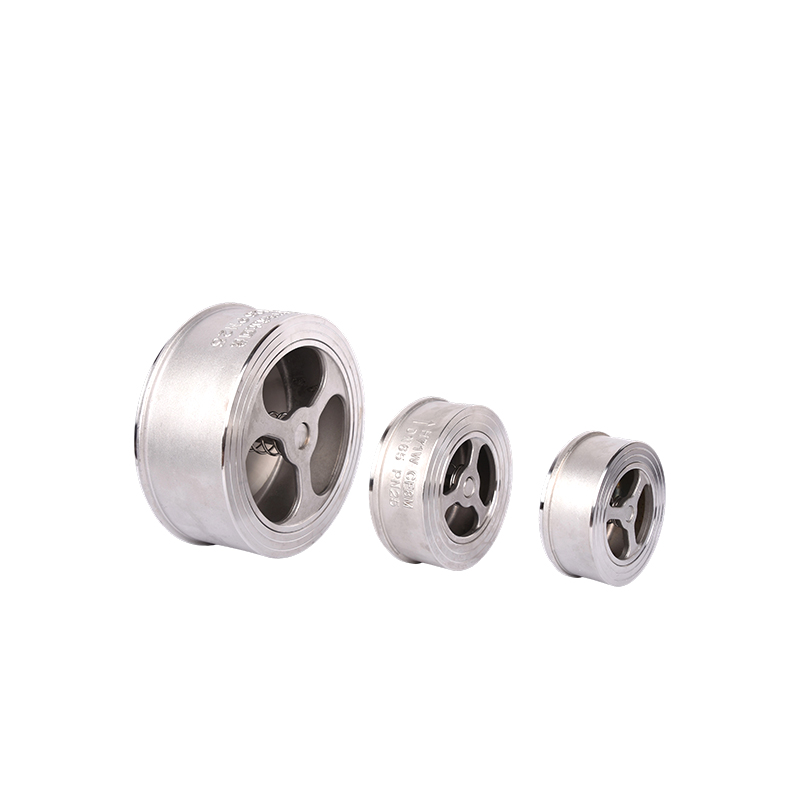

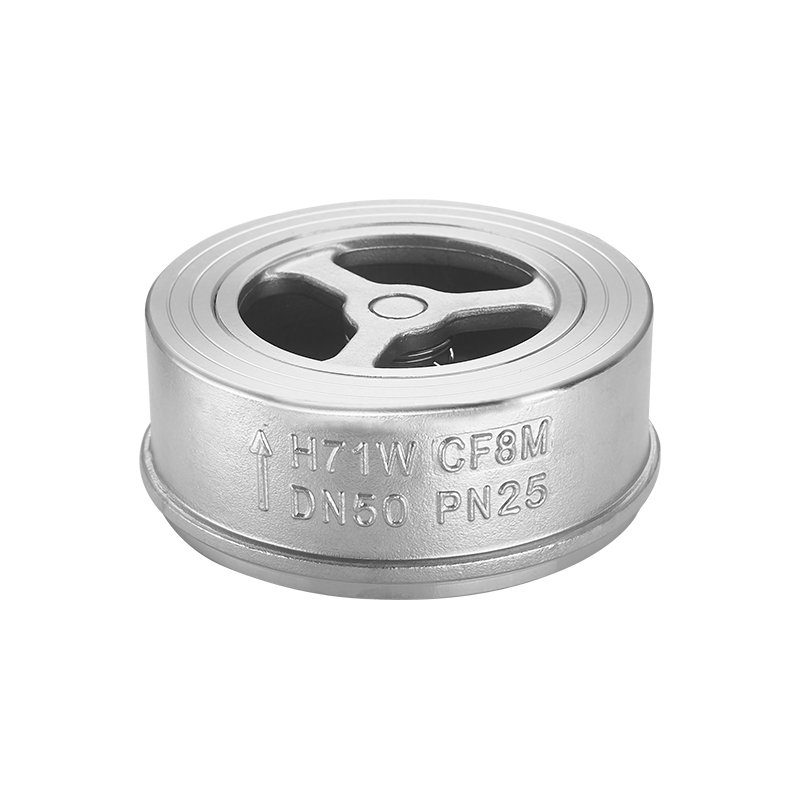

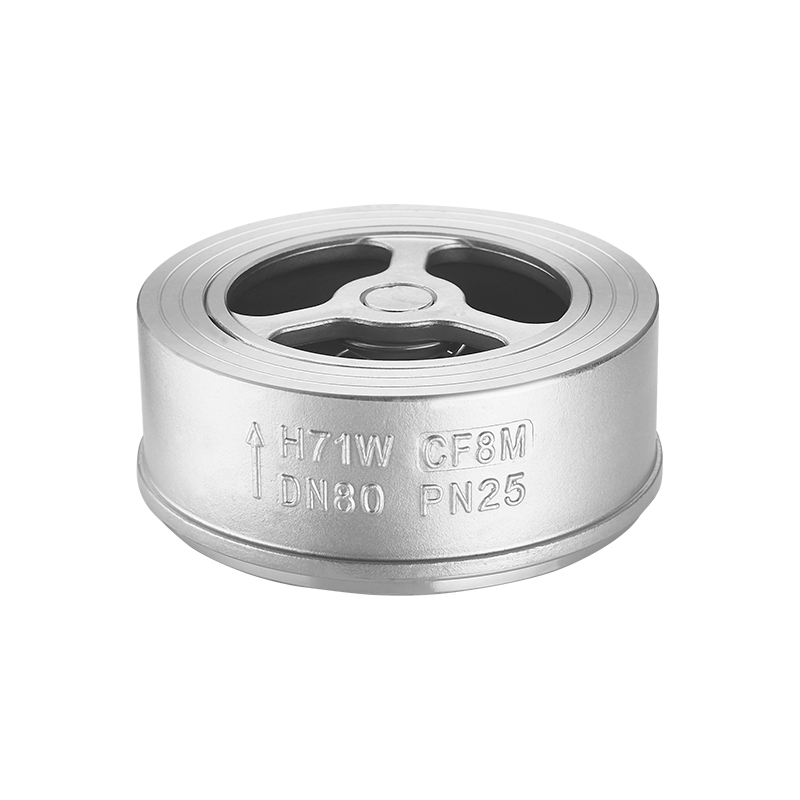

H71W 304/316 Stainless Steel Disc Type Water Check Valve

Product specification: DN15~150
Material: Stainless steel 304 316 WCB
Size: 1/2"--- 8"
Applicable temperature:-20~180 °C
Nominal pressure: PN 1.6~6.4MPa
Working pressure: 1000PSI
Bore: Reduce bore
Connection type: FG(flange)
Design and manufacture:GB/T 12237/ANSI B16.34
Connection size:GB/T 9113.1/ASME B16.5
Structural length:GB/T12221/ASMw B16.1
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Inspection and test:GB/T 13927/API 598
Suitable media: Water, oil, air and some corrosive liquids

Wafer check valve is also called reverse flow valve, check valve, back pressure valve and one-way valve. This type of valve is automatically opened and closed by the force generated by the flow of the medium itself in the pipeline, and belongs to an automatic valve.

Advantage:

1.The structural length is short, and its structural length is only 1/4~1/8 of the traditional flange check valve.

2.Small size and light weight, its weight is only 1/4~1/20 of the traditional flange check valve.

3.The valve disc closes quickly and the water hammer pressure is small.

4.Both horizontal and vertical pipes can be used for easy installation.

5.The valve disc travel is short and the closing impact force is small.
