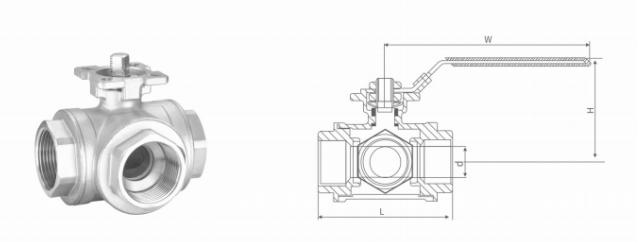

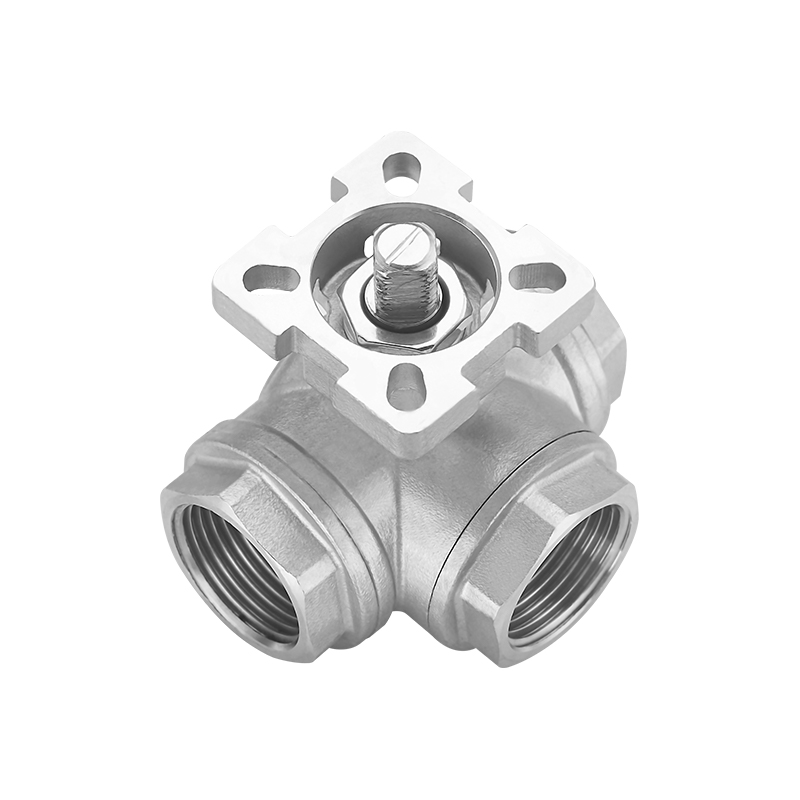

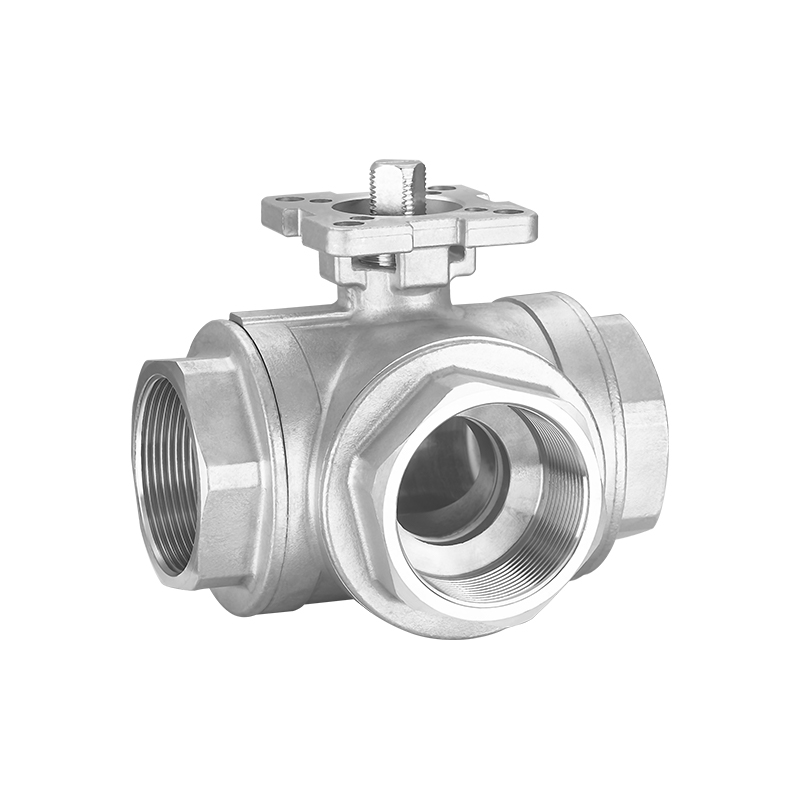

3-Way 304/316 Stainless Steel L/T Port Platform Ball Valve With Mounting Pad

Product specification: NPS1/4”-2”
Nominal pressure P N 1.6 MPa
Applicable media: water, air, oil
Applicable temperature:-20°~220℃
Thread standard: according to BSPT/BSP/NPT
Design and manufacture: GB/T 12224
Inspection and test: GB/T 13927

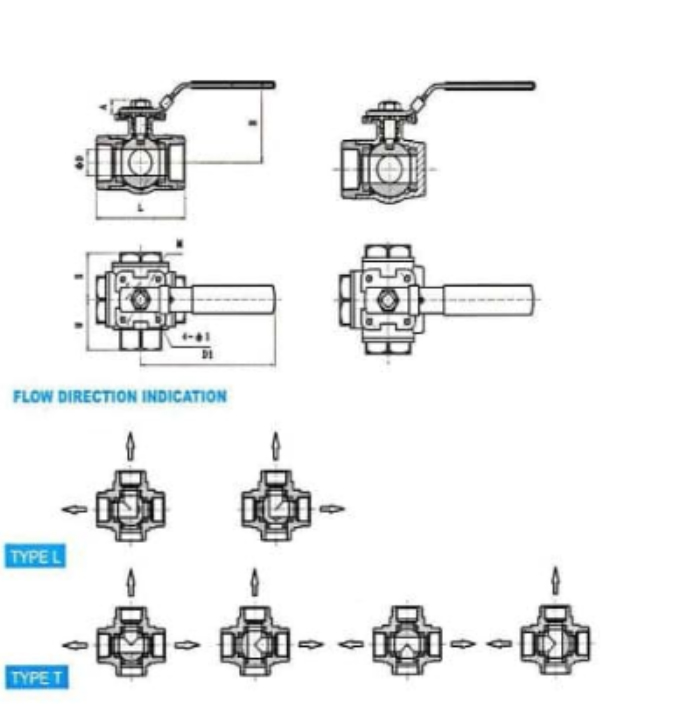

Three Way (3-way) Ball Valves, also known as directional ball valves, multi-port ball valves and diverting ball valves, are the easiest way to change the direction of flow in plumbing systems. Available in L-Port and T-Port configurations, the valves can switch flow from one line to another or open all three ports so that fluids or gas run from one line into two.

The T-port 3 way stainless steel ball valve (VBS3T) also serves as a mixing valve, bringing together two sources to be mixed in the outflow pipe. The L-port 3 way stainless steel ball valve (VBS3L) is a directional valve with a full shut-off capability, something the T-port does not do without modification.

Standard Port
1,000 PSI (WOG)
ISO-5211 Mounting pad for actuator
S.S. 304/316 Investment cast body
Suitable for full range of liquids and gas
Pure Teflon seals and seats
Temperature range: -40 to 400 degree Fahrenheit
Low operation torque
100% individually tested
Blow-out proof stem
FxF NPT threaded ends to ANSI B1.20.1
Heavy duty locking handles with blue vinyl insulator
