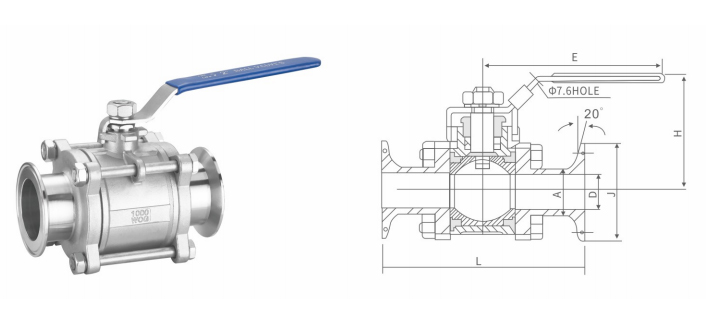

3 Piece Quick Installation Clamp End Platform Ball Valve With Mounting Pad

Product specification: NPS 1/2"~4"
Nominal pressure:PN 1.0/1.6MPa
Applicable media: water, air, oil
Applicable temperature:-20~120℃
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Structural length: GB/T 12221 ASMW B16.1
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test:GB/T 13927/API 598

1. Basic Definition

The three-piece quick-release platform ball valve is a split-piece valve consisting of a body, bonnet, and seat.
The quick-release design allows for rapid installation and removal. Its compact structure and excellent sealing make it ideal for fluid control applications. Thanks to its ISO platform, the valve can be installed with electric or pneumatic actuators, enabling customers to more efficiently operate the valve.

2. Core Structural Features

Split-piece design: The body, bonnet, and seat are assembled independently, facilitating maintenance and component replacement.
Excellent sealing: Utilizing PTFE, it is suitable for high-temperature, high-pressure, and corrosive media.
Quick-release design: Utilizing snap-fit or threaded connections, it shortens installation time and reduces labor costs.
High pressure resistance: Typically supports PN16-PN25.

3. Typical Applications

Industrial applications: Fluid control systems in the petroleum, chemical, water treatment, and food processing industries.
Media types: Water, oil, gas, acid and alkali solutions, etc. (Applications depend on the material). Special Requirements: High-temperature environments (such as steam pipes) or piping systems with frequent opening and closing.

4. Purchasing Recommendations

Material: Stainless steel (304/316), depending on the corrosiveness of the medium.
Pressure Rating: Match the operating pressure of the piping system to avoid overloading.

5. Additional Notes

Maintenance Tips: Regularly check the seal for wear to prevent impurities from clogging the valve seat.
Customization Requirements: Contact the manufacturer for custom diameters, connection methods, or materials for special applications.
