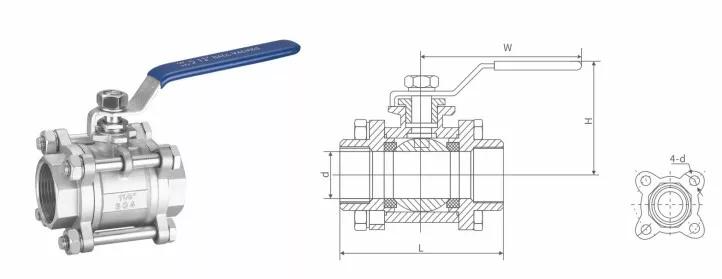

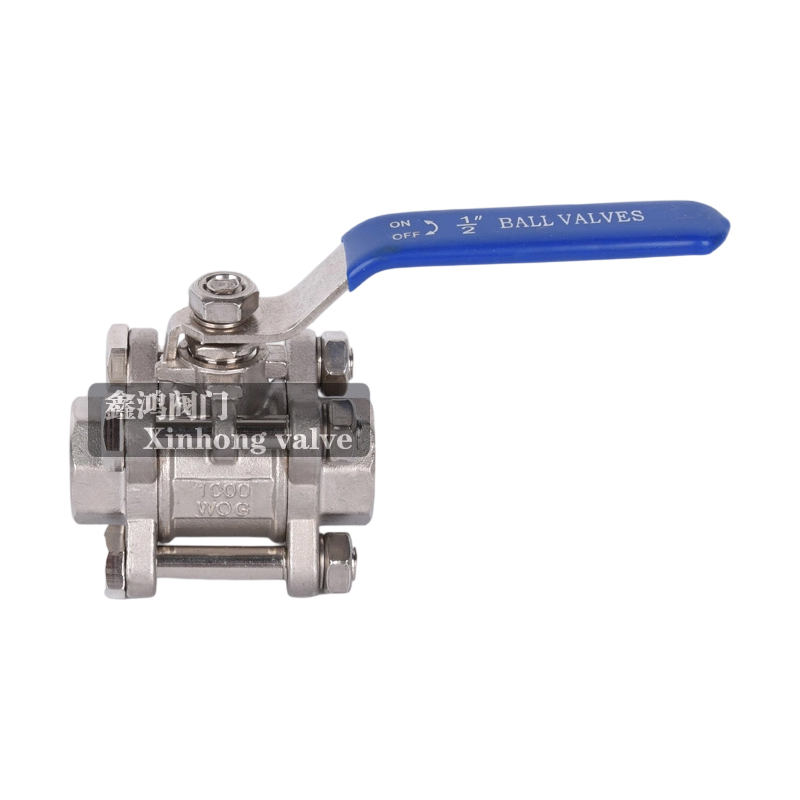

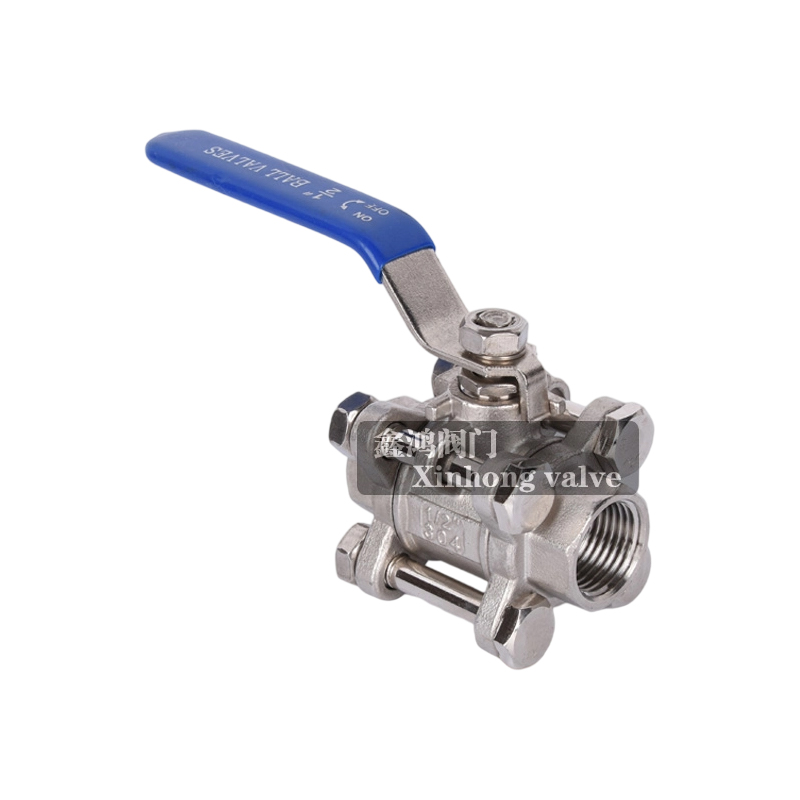

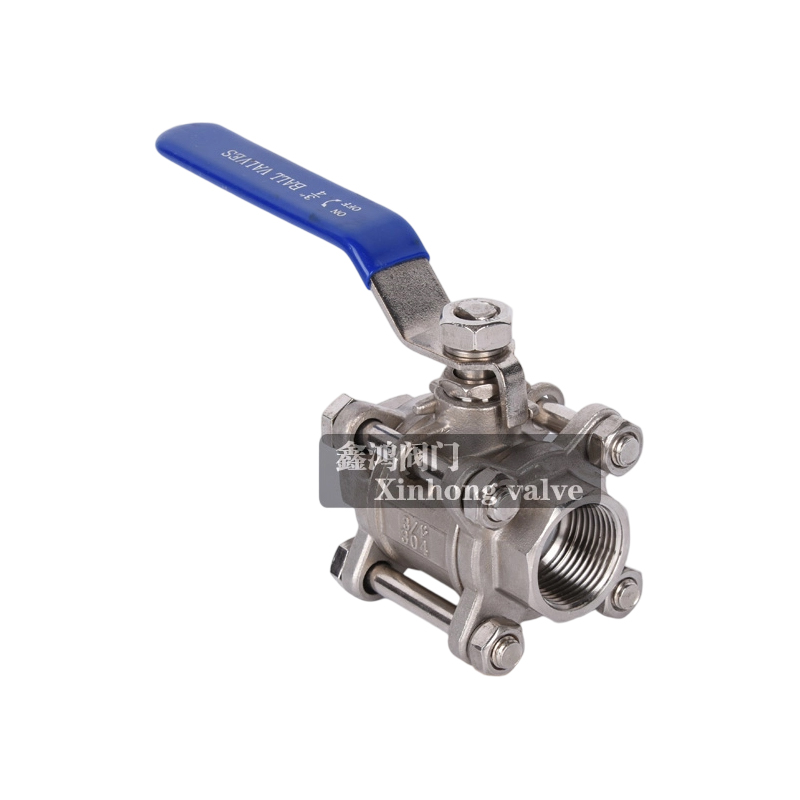

3 Piece/PC Manual Socket Welding Threaded Ball Valve

Working pressure 1000PSI
Material:304，316
Options: Locking device
Pipe thread ANSI B16.11

Specifications
Ports:Full/Standard
Body Style:Three Piece
Size Range:Full Port: 1/4" - 4" (8mm - 100mm)
Standard Port: 3/4" - 2.5" (19mm - 65mm)
Temperature Range:-50°F to 550°F (-46°C to 287°C)
Pressure Ratings:2200 psi CWP (151 Bar)
End Connections:Threaded, Socket Weld, Butt Weld, Flanged 600#, Extended Socket Weld, Extended Butt Weld
Body Materials:Stainless Steel, Carbon Steel, Special Alloys
Seat Materials:Standard: TFM 1600
Optional: Tek-Fil®*, PEEK, UHMWPE, RPTFE, Metal, Cavity Fillers
Applications:Process, Steam, Fire Safe, Industrial Gases, Severe Service

Available in full and standard port models, these rugged, high pressure three piece valves are ideal for process, severe service, high temperature, and high cycle applications.

Secure Mount: valves offer ease of automation due to an integrally cast actuator mounting pad that complies with ISO 5211 standards through 2" valve sizes.

The three piece body design of the Triad Series offers many advantages, including installation flexibility, elimination of the need for two sets of flanges, and ease of in line and out of line servicing. These time-saving features are beneficial for process industries, automated valves and welded piping systems by reducing costly downtime. During maintenance, the actuator and accessories can remain mounted on the valve body. The entire valve and actuator assembly is easily reinstalled with no need for recalibration of the unit.

In Line Servicing: To perform in line maintenance, remove the body bolts on opposing sides of the center body, loosen the 2 bolts at the top of the valve and swing the body up. The valve can swing to the left or right depending on which bolts are removed. All body components can be serviced in this position without disturbing the piping system.

Out-of-Line Servicing: For complete removal of valve from the line, remove all body bolts, then lift the valve body out of the pipeline. The removed body can be serviced or replaced, then reinstalled without needing to realign the end connections or the piping system.

The two-piece ball valve and the three-piece ball valve are different from the flow chip ball valve. The internal design structure is a necked design. The same caliber product is more resistant to pressure than the two types of ball valves. The two-piece type is more than the three-piece type. The advantages of the two-piece ball valve are low cost and cheap; the two-piece ball valve has the pressure resistance capacity and flow rate of the three products. The three-piece ball valve is  is easy to install. Because the three-piece ball valve is installed and disassembled and installed with the pipeline.3PC ball valve have different way of connecting like flange,thread,butt weld and clamp.
