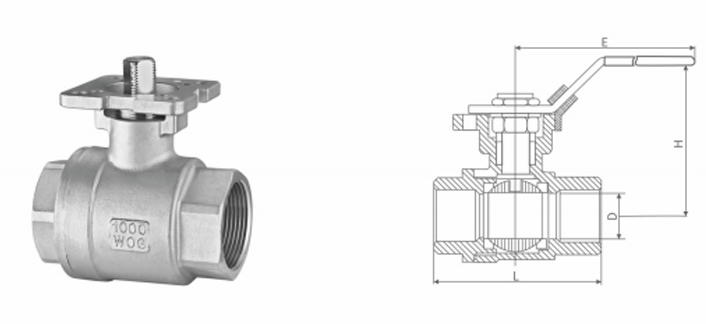

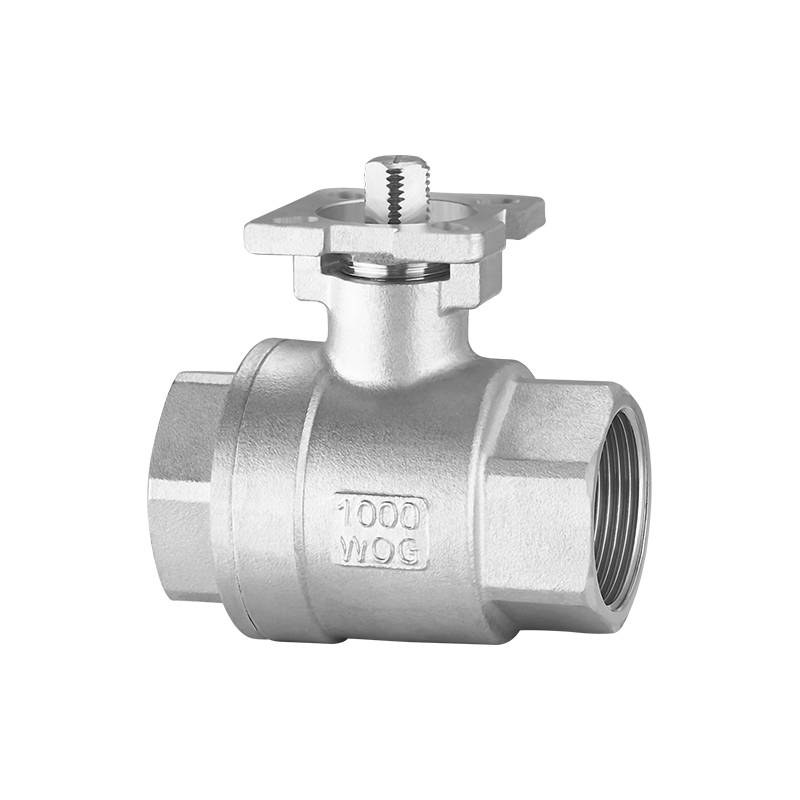

2 Piece/PC 304/316 Stainless Steel Platform Ball Valve With Mounting Pad

304/316 stainless steel investment cast full port body
ISO-5211 square stem mounting pad for actuator
Product specification: NPS 1/2"~4"
Nominal pressure: PN 1.0/1.6MPa
Applicable media: water, air, oil, acid
Applicable temperature:-20~120℃
Working pressure of 1,000 PSI (WOG)
Suitable for a full range of liquids and gases
Pure Teflon seals and seats
Temperature range: -40 to 400 °F
Low operation torque
100% individually tested
Blowout-proof stem
Female x Female NPT threaded ends to ANSI B1.20.1
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test: GB/T 13927/API 598

This two-piece, high-platform, internally threaded ball valve is manufactured from high-quality 304 (CF8) or 316 (CF8M) stainless steel. It features a compact design, high strength, excellent corrosion resistance, and excellent sealing performance. Available in sizes from NPS 1/2" to 4", with nominal pressures up to PN 1.0/1.6 MPa, it is suitable for a variety of media, including water, air, oils, and acids, and operates in temperatures from -20°C to 120°C. Connecting threads are compatible with various standards (BSPT/BSP/NPT/DIN/JIS/RC/G), facilitating global installation.

The ball, stem, and bonnet are all made of stainless steel, while internal sealing components utilize PTFE (polytetrafluoroethylene) for wear and high temperature resistance, ensuring long-term, leak-free operation. This valve features a high-platform structure and mounting pad, allowing for direct actuator mounting for easy automation. It is widely used in fluid pipeline automation systems in industries such as chemical, water treatment, food, and pharmaceuticals, where cleanliness and corrosion resistance are paramount. This high-performance internally threaded ball valve combines stability, durability, and ease of installation.
