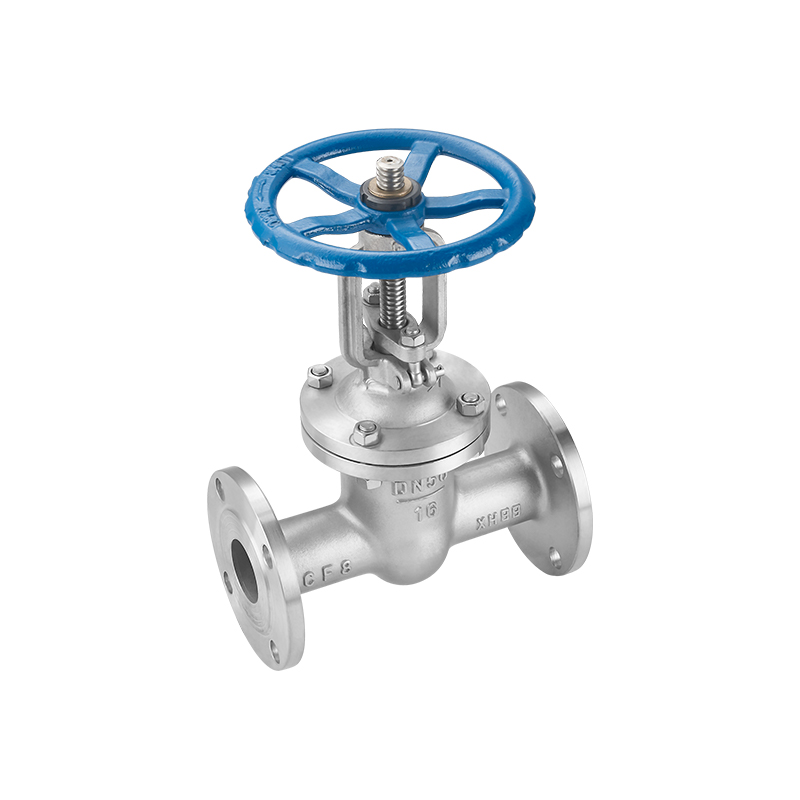

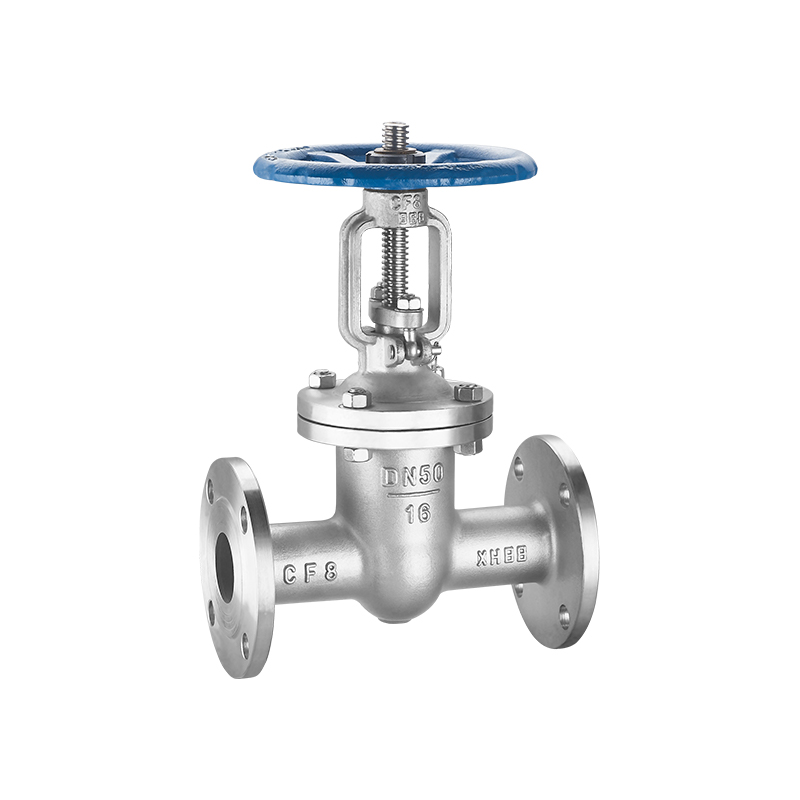

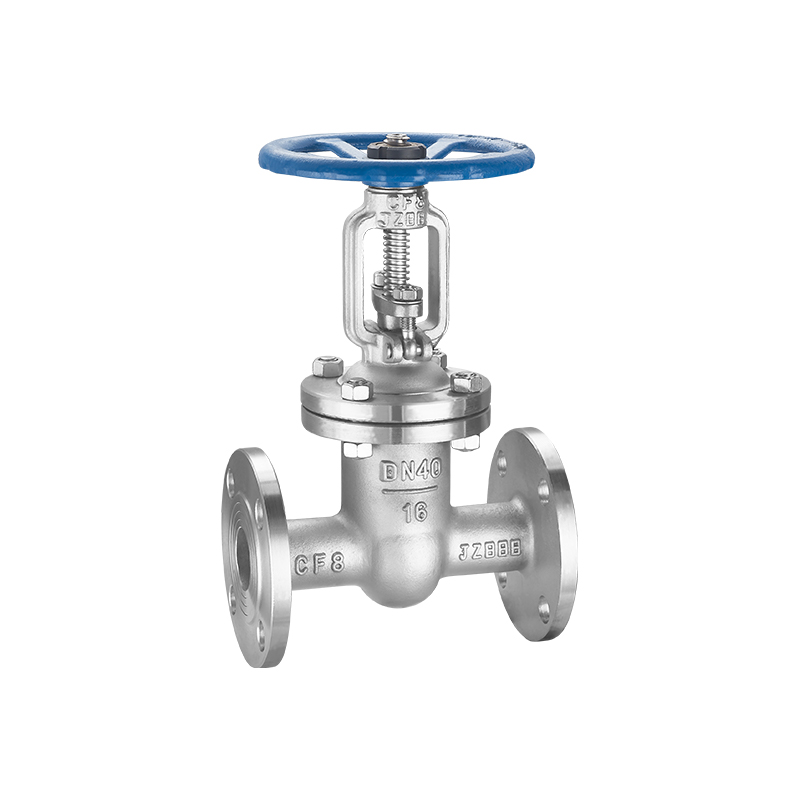

PN16 National Standard Austenitic Stainless Steel Flange Gate Valve

Product specification: NPS 1/2"~2"(DN 15~50)
Nominal pressure:PN 1.6~6.4MPa
Strength test pressure:PT2.4~9.6MPa
Sealing test pressure of low pressure gas:0.6MPa
Z15W-(16~64)C: water,oil and gas
Z15W-(16-64)
P: nitric acid
Z15W-(16-64)R: nitric acid
Applicable temperature:-20~180℃

Flanged gate valve is a gate valve with flange connection, which is the most common connection method. Flanged gate valves are stable and reliable when used in pipelines, so flanged gate valves are often used in high-pressure pipelines.


Advantage:
1. Made of austenitic stainless steel, it has good corrosion resistance to oxidizing acid media.
2.When the medium flows through the stainless steel gate valve, it does not change its flow direction, and the fluid resistance is small
3.The movement direction of the gate is perpendicular to the flow direction of the medium, the opening and closing torque is small, and the opening and closing is more labor-saving.
4.The flow direction of the medium is not restricted, the flow is not disturbed, and the pressure is not reduced. The medium can flow in any direction on both sides of the gate valve to achieve the purpose of use. It is most suitable for pipelines where the flow direction of the medium may change.
