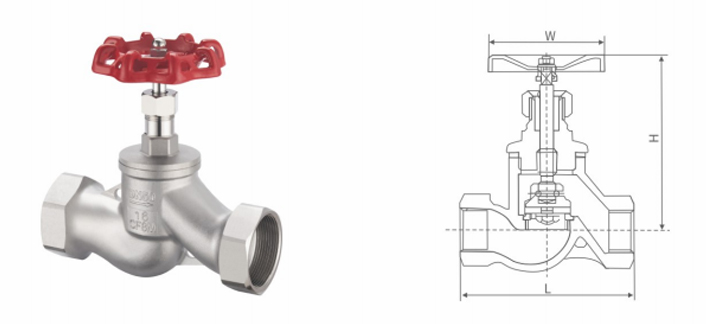

PN 16 Pressure National Standard Flange Globe Valve

Product specification: NPS 1/2"~2"
Applicable temperature:-20~120℃
Nominal pressure:PN 1.6MPa
Design and manufacture: GB/T 12237/ANSI B16.34
Connection size:GB/T 9113.1/ASME B16.5 CLASS150
Structural length:GB/T 12221/ASMW B16.1
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Inspection and test:GB/T 13927/API 598

1. Basic Parameters

PN16: Indicates a nominal pressure rating of 1.6 MPa (approximately 16 bar), suitable for medium and low pressure applications.
Flange Connection: Connects to the pipe via a flange, facilitating disassembly and maintenance. Commonly used for fixed piping systems.
Valve Body Material: Common carbon steel, stainless steel (such as 304, 316), or alloy steel, selected based on the corrosiveness of the medium.

2. Structural Features
Globe Valve Type: Controls flow by raising and lowering the disc. Suitable for full open/closed operation. Not recommended for flow regulation.
Sealing Method: Soft seal (rubber/PTFE) or hard seal (metal overlay). Soft seals offer greater corrosion resistance, while hard seals offer better wear resistance.
Actuation Method: Manual, electric, pneumatic, or hydraulic. Manual models require a handwheel. Electric/pneumatic actuation is commonly used in automated systems.

3. Applications
Industrial piping systems: Petroleum, chemical, water treatment, HVAC (heating, ventilation, and air conditioning), food processing, etc. Media Types: Water, oil, gas, steam, and mildly corrosive liquids (depending on the material).
Temperature Range: Typically -29°C to 425°C (depending on the material and seal material).

4. Selection Key Points
Pressure Compatibility: Ensure system pressure is ≤ PN16 (1.6 MPa).
Media Compatibility: Select valve body and seal materials based on corrosiveness and temperature.
Connection Dimensions: Flange standards must match the pipeline (e.g., GB, ANSI, EN, etc.).
Drive Requirements: Electric/pneumatic actuators are preferred for automation scenarios.

5. Installation Considerations
Directional: The valve disc must be installed vertically, with the media flow direction aligned with the arrow on the valve body.
Seal Check: Clean the flange surfaces before installation and use gaskets (e.g., graphite or rubber) to ensure a tight seal.
Support and Maintenance: Large valves require brackets and regular checks of seals and actuator lubrication.
