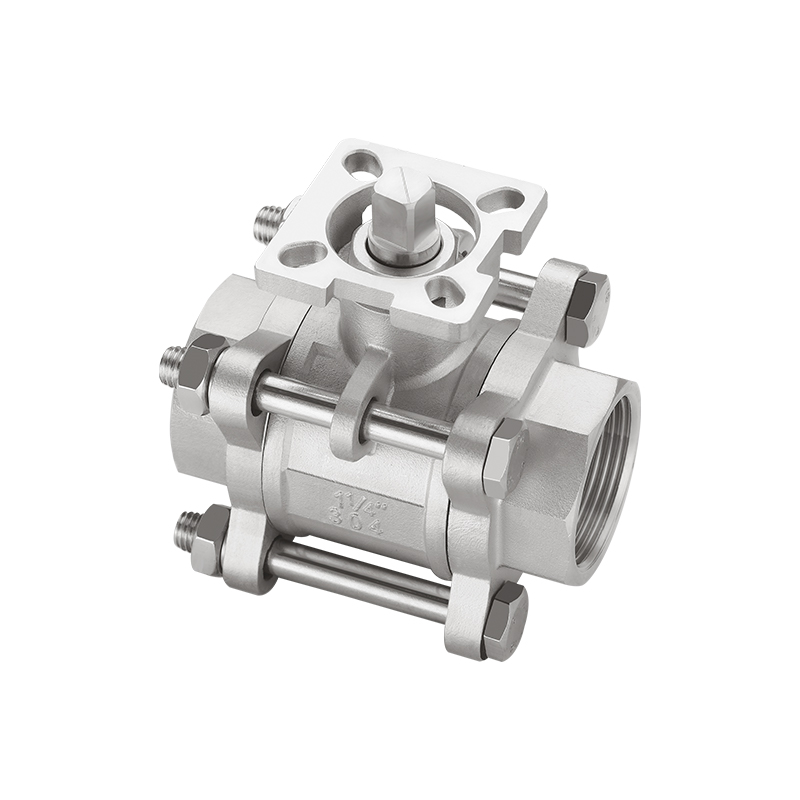

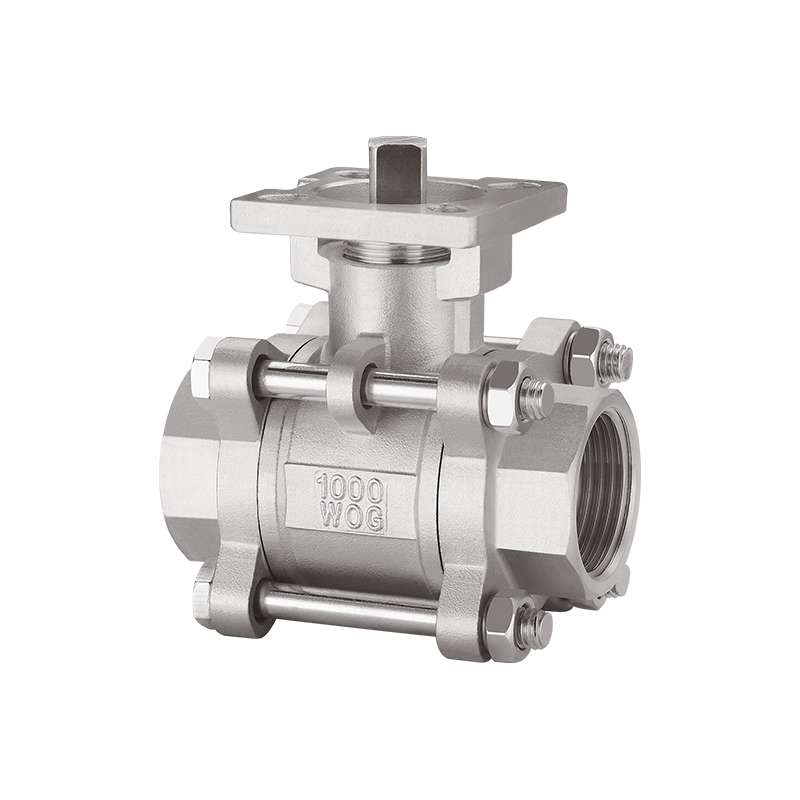

3 Piece/PC Manual Stainless Steel Flange Ball Valve With ISO Mounting Pad

Material SS304, 304L, 316, 316L
Size 1/4”-4”&DN6-DN100
Certificate ISO9001: 2000,CE
Working pressure: 1000psi(6.4MPa)
Connection Ends :Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW).
Suitable medium: Water, gas, air and some corrosive liquid
Temperature Range: -20-300 degree C
Investment: casting body and cap
Sealing :PTFE, RPTFE, PPL
stem: SS304,SS316   Adjustable stem packing,
Locking: option

The new high-platform ball valve is easy to maintain, and the ball valve has a simple structure. When the stem leaks, the gland can be tightened to achieve the effect of no leakage. When the actuator is installed, it is not necessary to remove the actuator to solve the leakage problem, saving time and manpower cost.

Q11F-16P: 3PC type ball valve with mounting pad has the advantages of good sealing performance, simple structure, small volume, light weight, small flow resistance, etc.

3PC type ball valve with mounting pad is a relatively new type of ball valve. It has some unique advantages of its own structure, such as no friction on the switch, the seal is not easy to wear, and the opening and closing torque is small. This reduces the size of the fitted actuator. Equipped with a multi-turn electric actuator, the medium can be adjusted and tightly shut off. It is widely used in oil, chemical industry, urban water supply and drainage and other working conditions that require strict cut-off.
