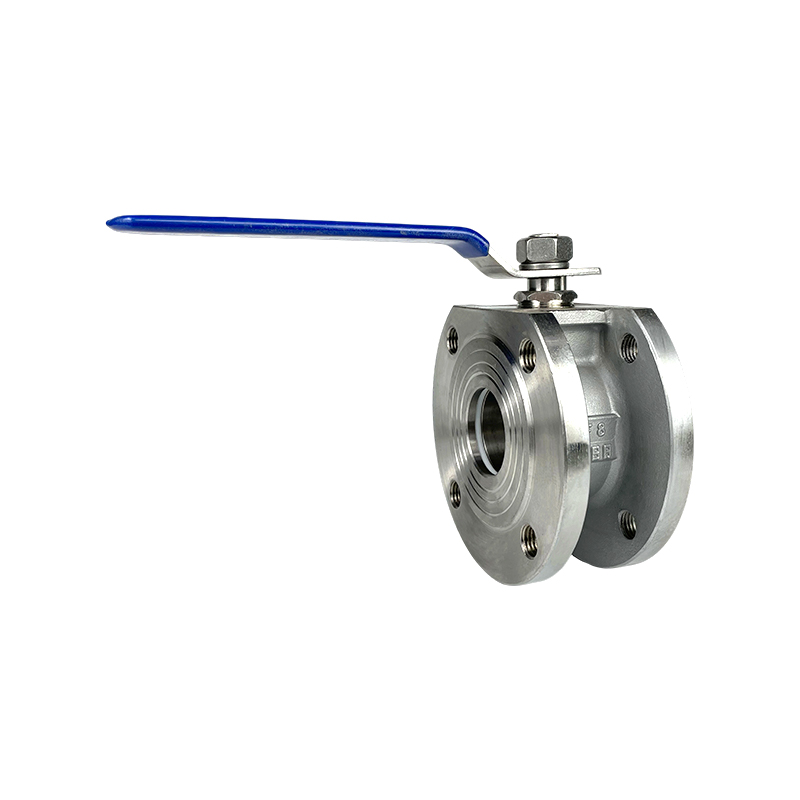

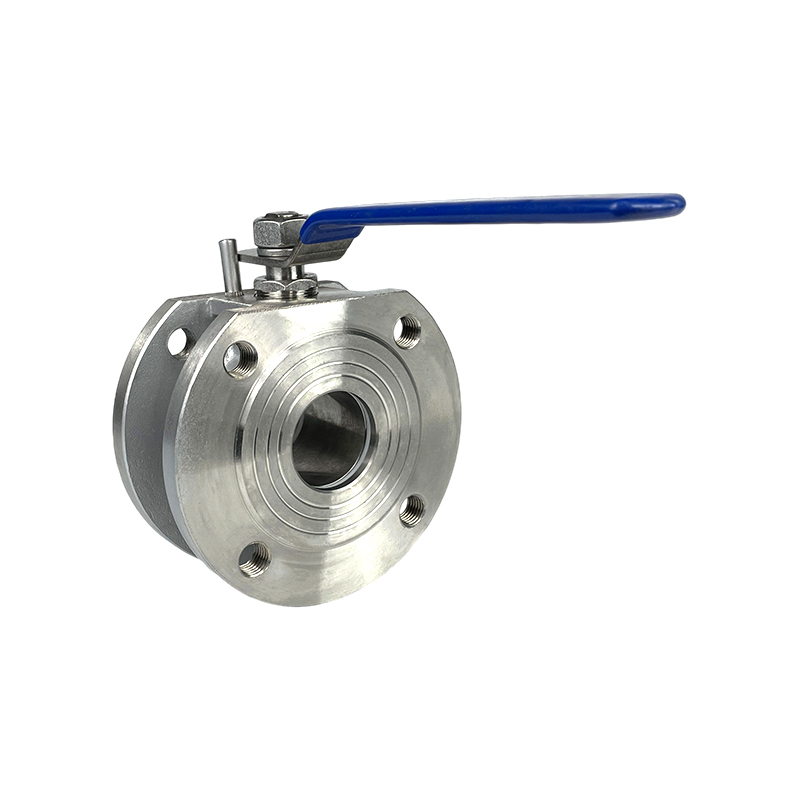

1Piece/PC Flanged Wafer Manual Ball Valve

Main Performance Specifications
Product specification:DN15-100

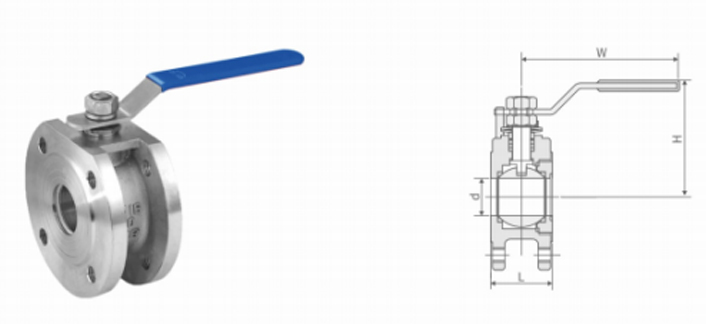

Structure length:Q/syf012-96
Flange standard:GB/T 9113
Transmission mode: manual operate
Design and manufacture:GB/T 12224/ANSI B16.34
Inspection and test : API 598

The 1PC flange type wafer ball valve has obvious advantages such as short structural length, light weight, convenient installation and material saving. The thermal insulation jacketed ball valve has a good thermal insulation effect. In addition, the valve seat adopts an elastic sealing structure, which is reliable in sealing and easy to open and close. Equipped with fire-resistant structure, in case of fire, it can still operate reliably and have good sealing performance. According to user needs, it can be equipped with anti-static structure. A 90° switch with hole positioning piece is set, which can be locked as needed to prevent misoperation.

Usage:
The wafer ball valve and the wafer insulation jacketed ball valve are suitable for Class150, PN1.0~2.5MPa, and the working temperature is 29~180°C (the sealing ring is reinforced PTFE) or 29~300°C (the sealing ring is para-polyphenylene). ), it is used to cut off or connect the medium in the pipeline, and different materials are selected, which can be respectively applied to various media such as water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and so on.
